import RPi.GPIO as GPIO
import time
LSBFIRST = 1
MSBFIRST = 2
dataPin = 11 #DS Pin of 74HC595(Pin14)
latchPin = 13 #ST_CP Pin of 74HC595(Pin12)
clockPin = 15 #CH_CP Pin of 74HC595(Pin11)
def setup():
GPIO.setwarnings(False)
GPIO.setmode(GPIO.BOARD)
GPIO.setup(dataPin, GPIO.OUT)
GPIO.setup(latchPin, GPIO.OUT)
GPIO.setup(clockPin, GPIO.OUT)
def shiftOut(dPin,cPin,order,val):
for i in range(0,8):
GPIO.output(cPin,GPIO.LOW);
if(order == LSBFIRST):
GPIO.output(dPin,(0x01&(val>>i)==0x01) and GPIO.HIGH or GPIO.LOW)
elif(order == MSBFIRST):
GPIO.output(dPin,(0x80&(val<<i)==0x80) and GPIO.HIGH or GPIO.LOW)
GPIO.output(cPin,GPIO.HIGH);
def loop():
while True:
# number 0x3f is 0
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x3f)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x06 is number 1
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x06)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x5b is number 2
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x5b)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x4f is number 3
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x4f)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x66 is number 4
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x66)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 5 is 0xed
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0xed)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 6 is 0xfc
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0xfc)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x07 is number 7
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x07)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x7F is number 8
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x7F)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x67 is number 9
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x67)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x77 is number 10 or A
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x77)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x7C is number 11 or b
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x7C)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x58 is 12 or c
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x58)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x5E is 13 or d
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x5E)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x79 is 14 or e
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x79)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
# number 0x71 is 15 or f
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x71)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(2)
# blank
GPIO.output(latchPin,GPIO.LOW)
shiftOut(dataPin,clockPin,MSBFIRST,0x00)
GPIO.output(latchPin,GPIO.HIGH)
time.sleep(0.1)
def destroy():
GPIO.cleanup()
if __name__ == '__main__':
print ('Program is starting...' )
setup()
try:
loop()
except KeyboardInterrupt:
destroy()

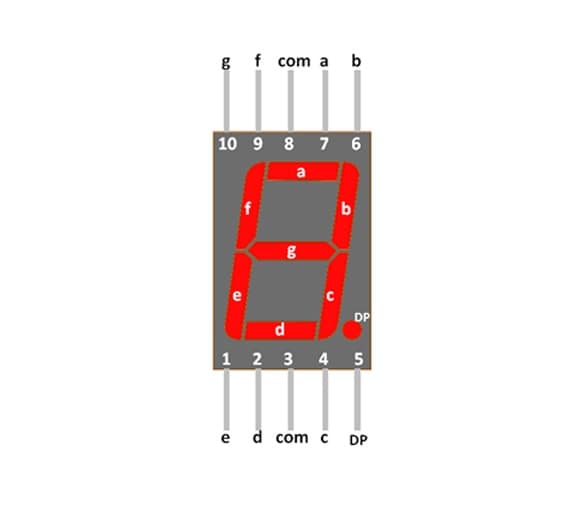

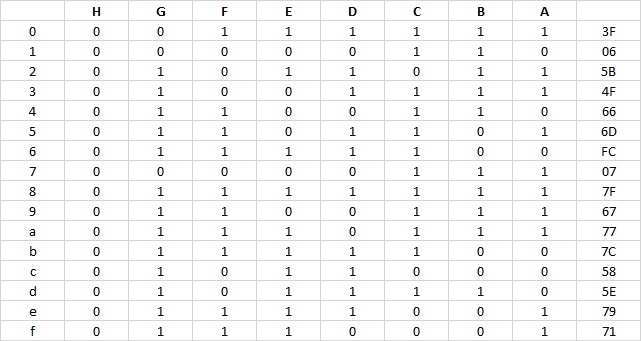

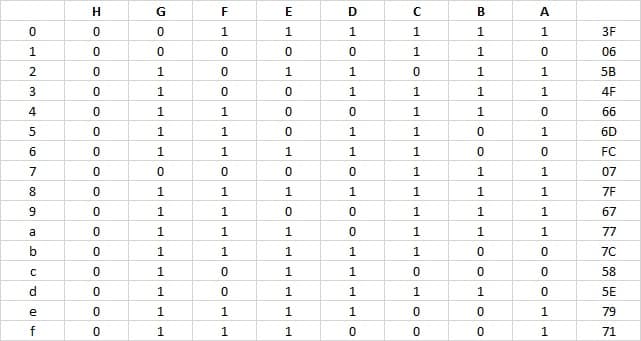

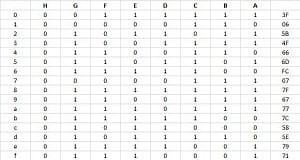

Logic Table for MSBFirst. Most Significant Bit is H or DP. It would be the last bit and you do them in reverse order like the table.
H-E is the First Bit
D-A is the Second Bit
First Bit = 8*H + 4*G + 2*F + 1*E
Second Bit= 8*D + 4*C + 2*B + 1*A
It is done in Hex: 0-9 are just 0-9. 10 is A, 11 is B, 12 is C, 13 is D, 14 is E, 15 is F.
