Pin 5 : 10nF capacitor
Capacitor: 100nF
R2: 4.7k ohm + 2.2k ohm+ 100 ohm= 7k ohm
R1: 100 ohm + 100 ohm = 200 ohm
Frequency: 1000 Hz
Period: 999.81us

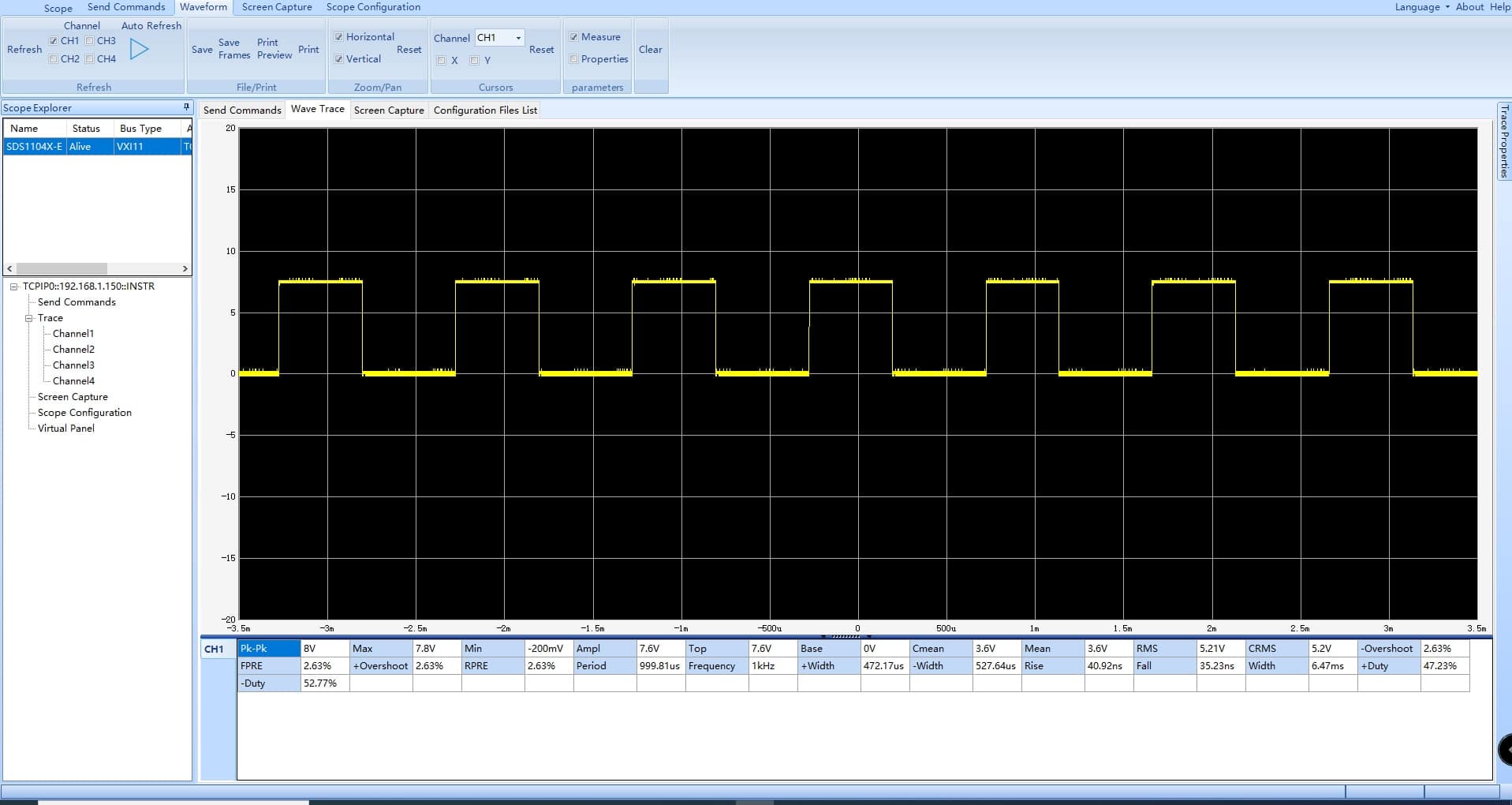

+ width: 472.17us
+ duty cycle: 47.23%
– width: 527.64us
– duty cycle: 52.77%
1kHz astable
