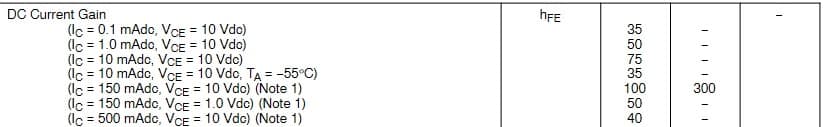

We will start with getting Beta and Icg. IC = Icg. So we can go to the table above to find IC for 10mA. Minimum Beta hre is 35 and maximum is 300. So lets choose 200.
