∑ Vij= 0
loop
sum of voltage around any loop is 0

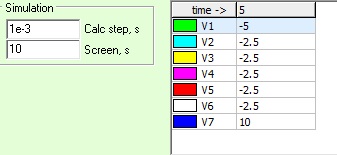

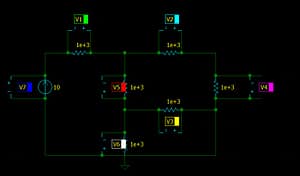

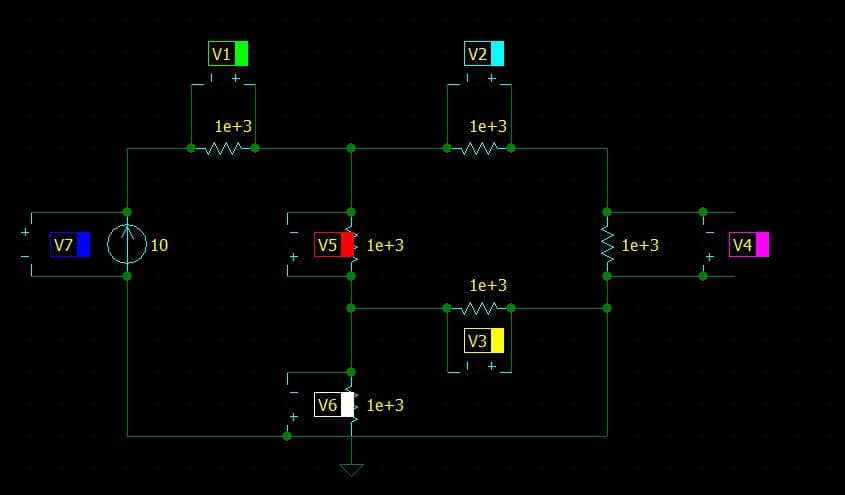

V7 + V1 + V5 + V6 =0
10 + ( -5 ) + (-2.5) + ( -2.5 ) = 0
V7 + V1 + v2 + V4 = 0
10 + ( -5 ) + (-2.5) + ( -2.5 ) = 0

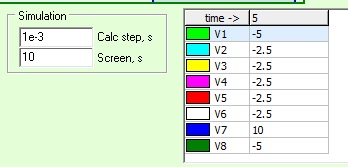

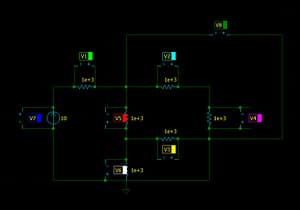

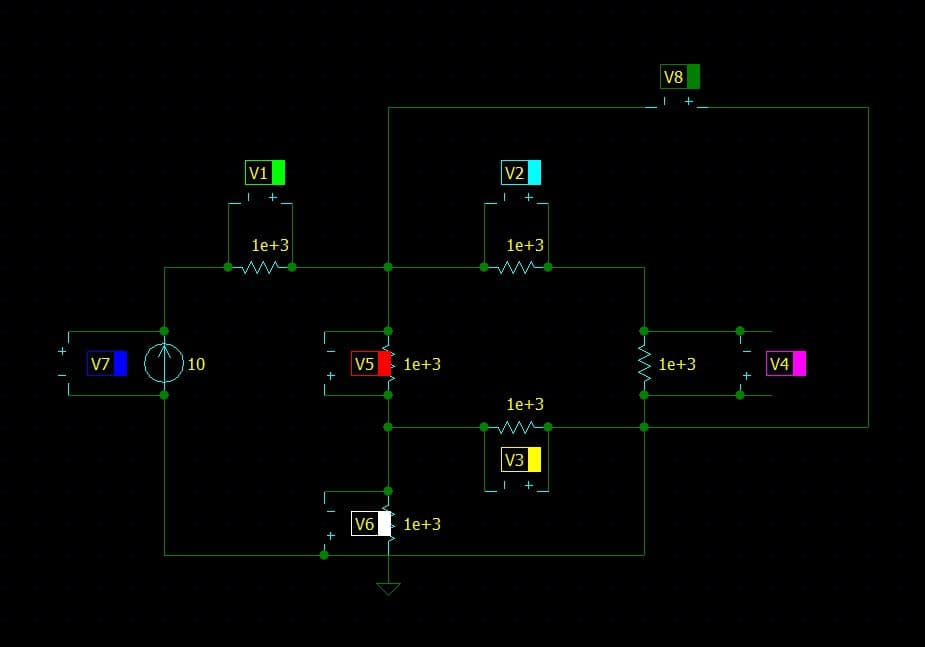

I added V8 from V2 to V4 nodes. We find they are in series since RTOTAL = R1 + R2
V8 = V2 + V4
-5 = (-2.5) + (-2.5)
