// Wiring: SDA pin is connected to A4 and SCL pin to A5.

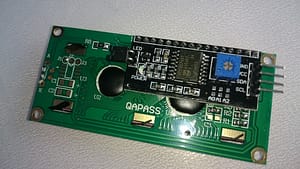

// Connect to LCD via I2C, default address 0x27 (A0-A2 not jumpered)
LiquidCrystal_I2C lcd = LiquidCrystal_I2C(0x27, 20, 4); // Change to (0x27,20,4) for 20×4 LCD.

#include
int x = 0;
int LED = 13;

void setup()
{

 // Initiate the LCD:
  lcd.init();
  lcd.backlight();

// I2C counter for LEDs
pinMode (LED, OUTPUT);
// Start the I2C Bus as Master
Wire.begin();
// I2C counter for LEDs

/*
// I2C Scanner Code
Serial.begin(9600);
while (!Serial);             //  wait for serial monitor
Serial.println(“\nI2C Scanner”);
// I2C Scanner Code
*/

}

void loop() {

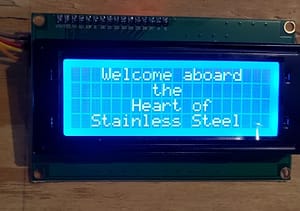

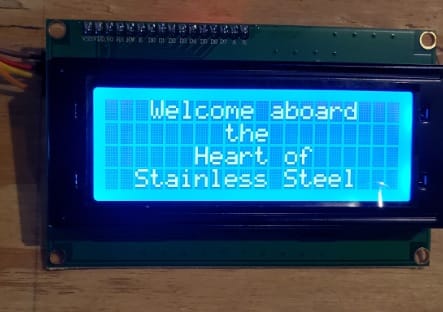

//LCD I2C 20X4
lcd.setCursor(3, 0);    // 4th column 1st row
lcd.print(“Welcome aboard”);

lcd.setCursor(8, 1);    // 9th column 2nd row
lcd.print(“the”);

lcd.setCursor(6, 2);    // 7th column 3rd row
lcd.print(“Heart of”);

lcd.setCursor(2, 3);     // 3rd column 4th row
lcd.print(“Stainless Steel”);
//LCD I2C 20X4

// I2C counter for LEDs
x++; // Increment x

//From Left to Right
// First UNO
Wire.beginTransmission(1); // transmit to device #1
Wire.write(x); // sends x
Wire.endTransmission(); // stop transmitting

//Second UNO
Wire.beginTransmission(2); // transmit to device #2
Wire.write(x); // sends x
Wire.endTransmission(); // stop transmitting

//Mega in the Middle

//Third UNO
Wire.beginTransmission(3); // transmit to device #3
Wire.write(x); // sends x
Wire.endTransmission(); // stop transmitting

//Fourth UNO
Wire.beginTransmission(4); // transmit to device #4
Wire.write(x); // sends x
Wire.endTransmission(); // stop transmitting

if ( (x == 3) || (x == 6)) {
digitalWrite(LED, HIGH);
}
else {
digitalWrite(LED, LOW);
}

if (x == 7) x = 0; // `reset x once it gets 6
delay(1000);
// I2C counter for LEDs

/*
// I2C Scanner Code
byte error, address;
  int nDevices;

  Serial.println(“Scanning…”);

  nDevices = 0;
  for(address = 1; address < 127; address++ )
  {
    // The i2c_scanner uses the return value of
    // the Write.endTransmisstion to see if
    // a device did acknowledge to the address.
    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    if (error == 0)
    {
      Serial.print(“I2C device found at address 0x”);
      if (address<16)
        Serial.print(“0”);
      Serial.print(address,HEX);
      Serial.println(”  !”);

      nDevices++;
    }
    else if (error==4)
    {
      Serial.print(“Unknown error at address 0x”);
      if (address<16)
        Serial.print(“0”);
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0)
    Serial.println(“No I2C devices found\n”);
  else
    Serial.println(“done\n”);

  delay(5000);           // wait 5 seconds for next scan
// I2C Scanner Code
*/

}
